Base Robot + CCTV Inspection
The ID-Tec Sewer Rehabilitation (SR) Series base robot is the multifunctional heavy-duty crawler for different applications in sewer rehabilitation. It features the Twist-and-lock mechanism for exchanging equipment modules for very diverse applications. The mechanism securely locks the necessary equipment to the front of the robot. It is a universal connector with power, video, and air inlet sources all included in the innovative mechanism, making it possible to change between different pieces of equipment within 60 seconds by only making a single connection.
The CCTV Inspection Camera, CQL160, is a pan and tilt camera featuring high definition 1080p video with two high-power LEDs for illumination. It mounts onto the front of the base robot and is controlled via the system control unit and software. ID-Tec’s standard control software is compatible with POSM Pro inspection software for NAASCO PACP certified inspections.
Base Robot
Cutter
Water Jet Cutting
TV Inspection
SR Series Base Robot
One robot system, the R160, multifunctional and modular built for trenchless inspecting, jetting and cutting 7” relined and larger pipelines. The SR Series features a crawler with innovative Twist-and-lock mechanism. The mechanism enables equipment exchanges in less than 60 seconds and holds power, video and air connections while securing a watertight fit.
The R160 can connect equipment modules for precision jet cutting equipment, grinding, milling and cutting equipment, and CCTV inspection equipment.
R160 Base Robot
- For relined 7" and larger pipe diameters
- Powerful 4x4 electrical drivetrain
- Durable stainless steel construction
- Modular build
- Twist-and-lock mechanism
CCTV Inspection Camera

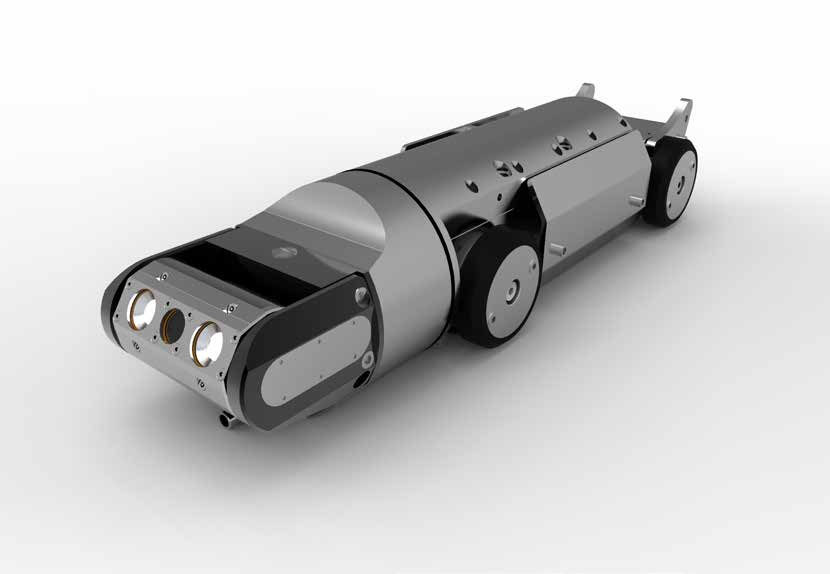

The CQL160 Camera for CCTV inspection of relined 7” and larger pipelines is specially developed for High Definition* CCTV inspection and the precise placement of CIPP renovation parts using packers and carriers. The front-mounted pan/tilt infinite rotation camera with high-power LEDs enables thorough pre- and post- inspection of the pipe rehabilitation. The SR Series operation software is compatible with POSM and WinCan inspection software for certified NASSCO PACP inspections.
Camera Features
- Infinite rotation pan/tilt camera
- 1080p HD camera
- Universal air coupling for connecting to packer carrier equipment
- Twist-and-lock mechanism for quick module change to robot
- Controlled by tablet or PC with easy to use ID-RIS software and ergonomic controls
Specifications
R160T3 Robot
SR Series Base Robot R160T3
Application Range: From 7" and larger pipe diameter
- Electrical powertrain
- Speed 80'/min with 3.15" wheels (24m/ min, 80mm)
- Electrical 500 degrees rotation
- 2x 4A digital outputs
- LED drivers 24V max. 4A
- Analog motor control 0-24V 4A
- Air coupling 175psi (12bar)
- Tilt sensor x-y
- Rotation sensor
- Temperature monitoring
- Pressurized system 14.5psi (1.5bar)
- Applicable in Egg Shaped Pipe: EGG250/375 and EGG350/525mm
- Dimensions LxWxH: 18.9" x 5.9" x 4.7" (480 x 150 x 120mm)
CQL160 Camera
CQL160 Camera
Application in 7" and larger pipe diameter
- 700TVL 576i color camera
- Infinite rotation
- Sapphire glass lens
- Heavy duty material
- 130° angle-of-view
- Lighting: 2x high-power LED 1200 Lumen
- 0.01 lux
- Air coupling: max. 175 psi
- Dimensions: L3.9"x W3.9"x H4.7"
- HD Camera SDI 1080p upgrade optional
Twist-and-lock mechanism to connect to SR Series Base Robot
